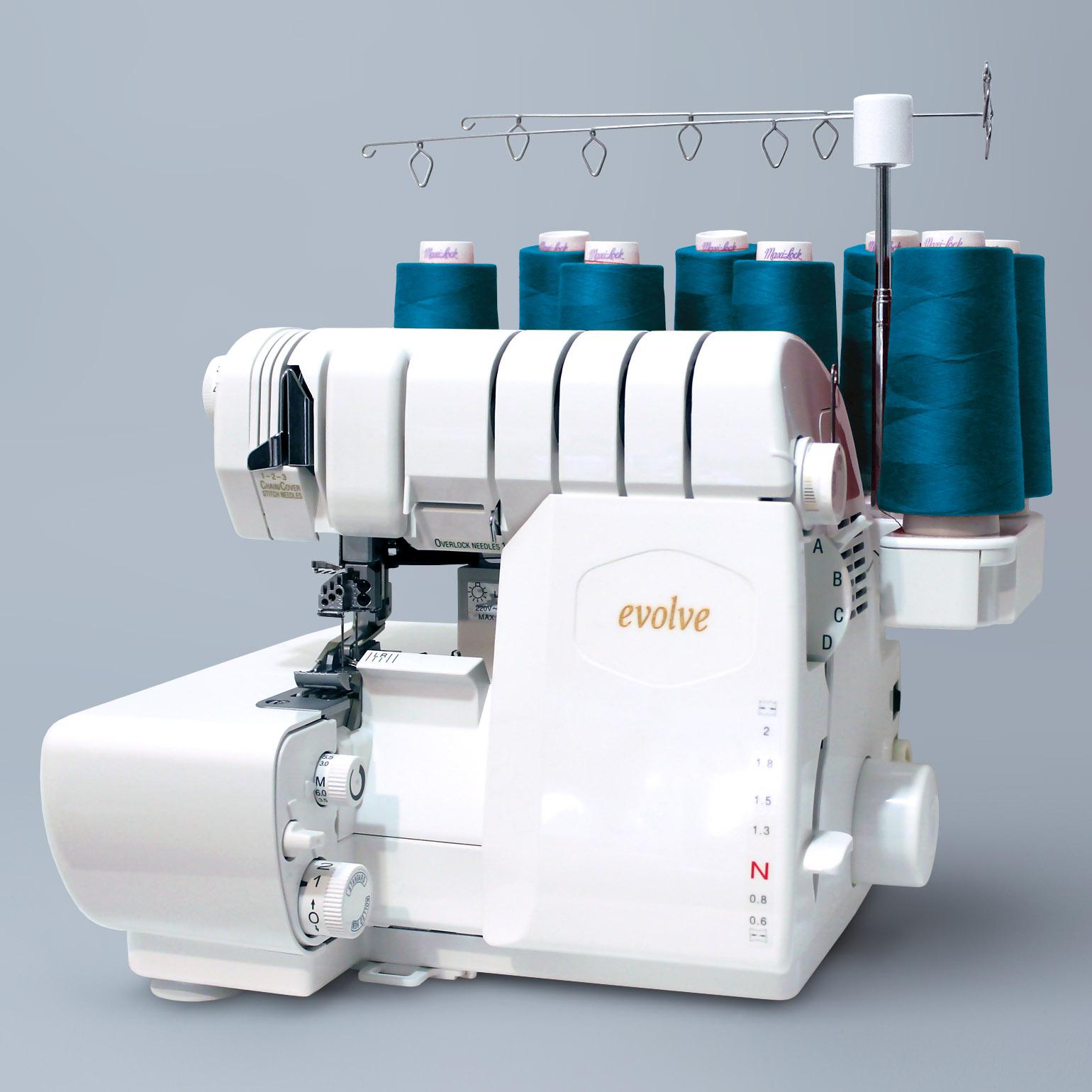

Baby Lock - Evolve Overlocker/Coverstitch Machine
The Evolve is a combination 8-thread overlocker/coverstitch machine that offers an amazing 66 stitch options. Combine overlock, coverstitch and chain stitches to form expressive 5,6,7 and 8 thread stitches.
The Evolve has all the patented features you would expect on a Baby Lock including JetAir™ Threading, Automatic Thread Delivery (ATD) System, tubular loopers, automatic cover stitch chain off and much more. There's no need to worry about keeping track of eight threads - the Evolve can be threaded in any order – in fact, the Evolve can be easily threaded in under one minute!
Converting the Evolve from Overlocking to coverstitch and back is just 4 easy steps.
Evolve Features:

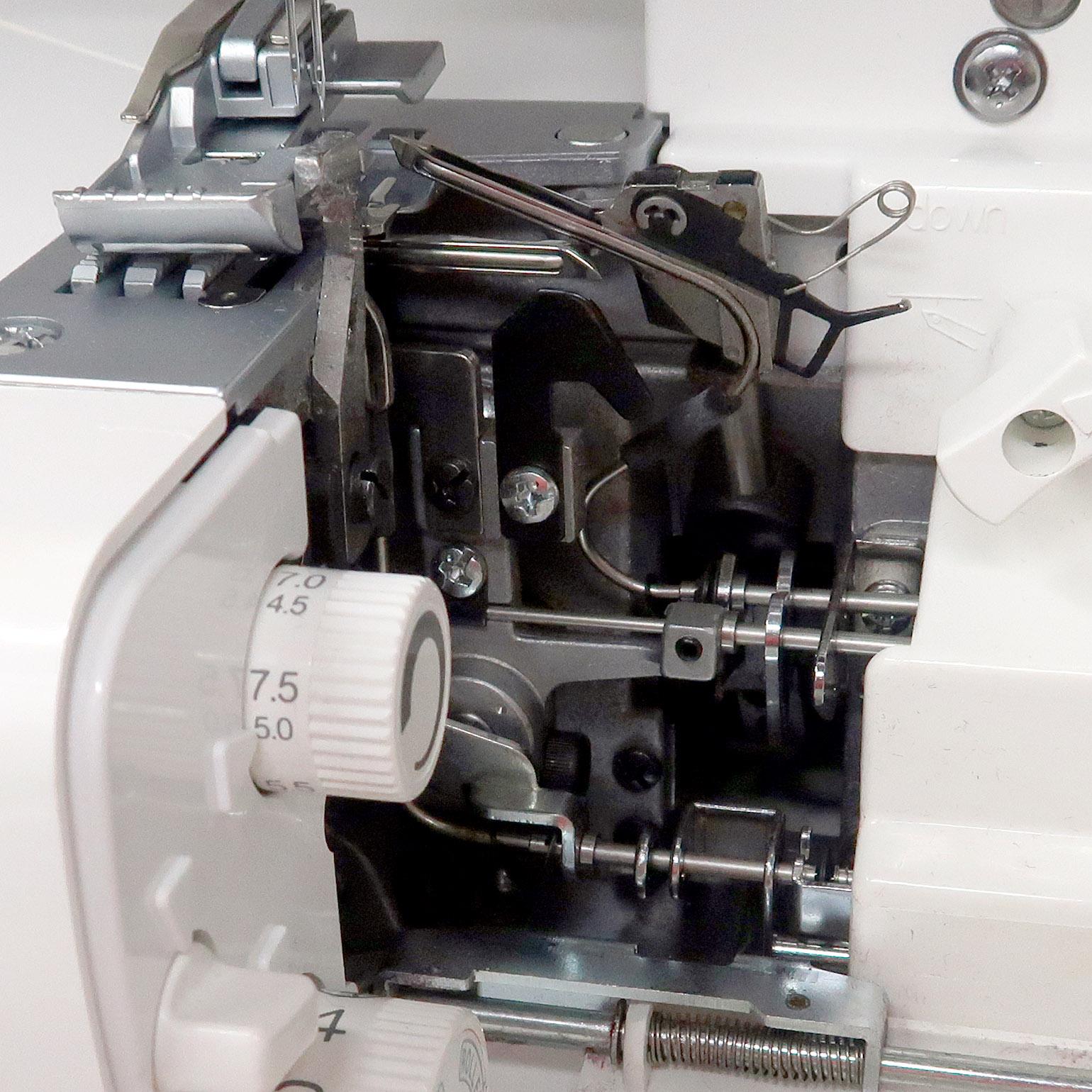

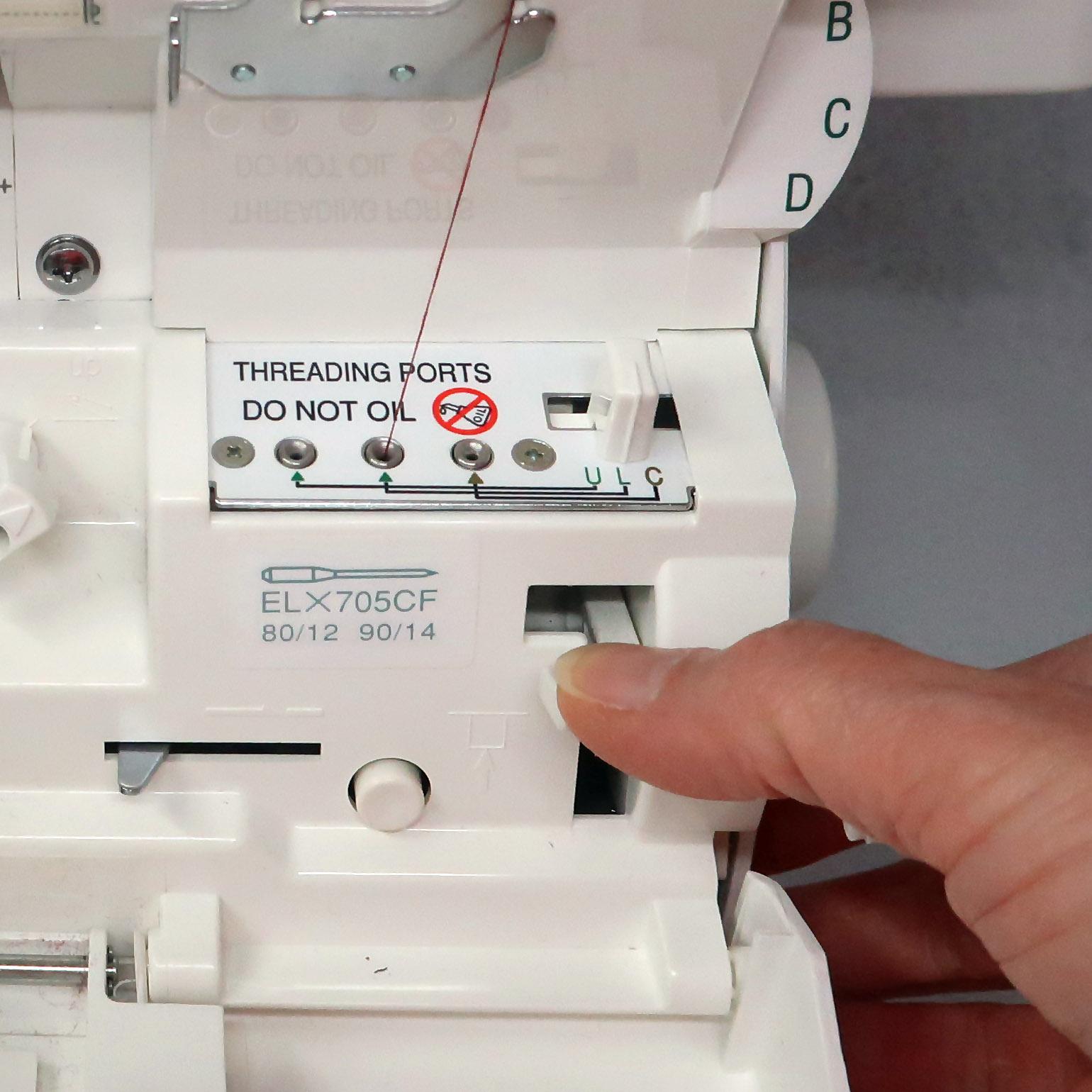

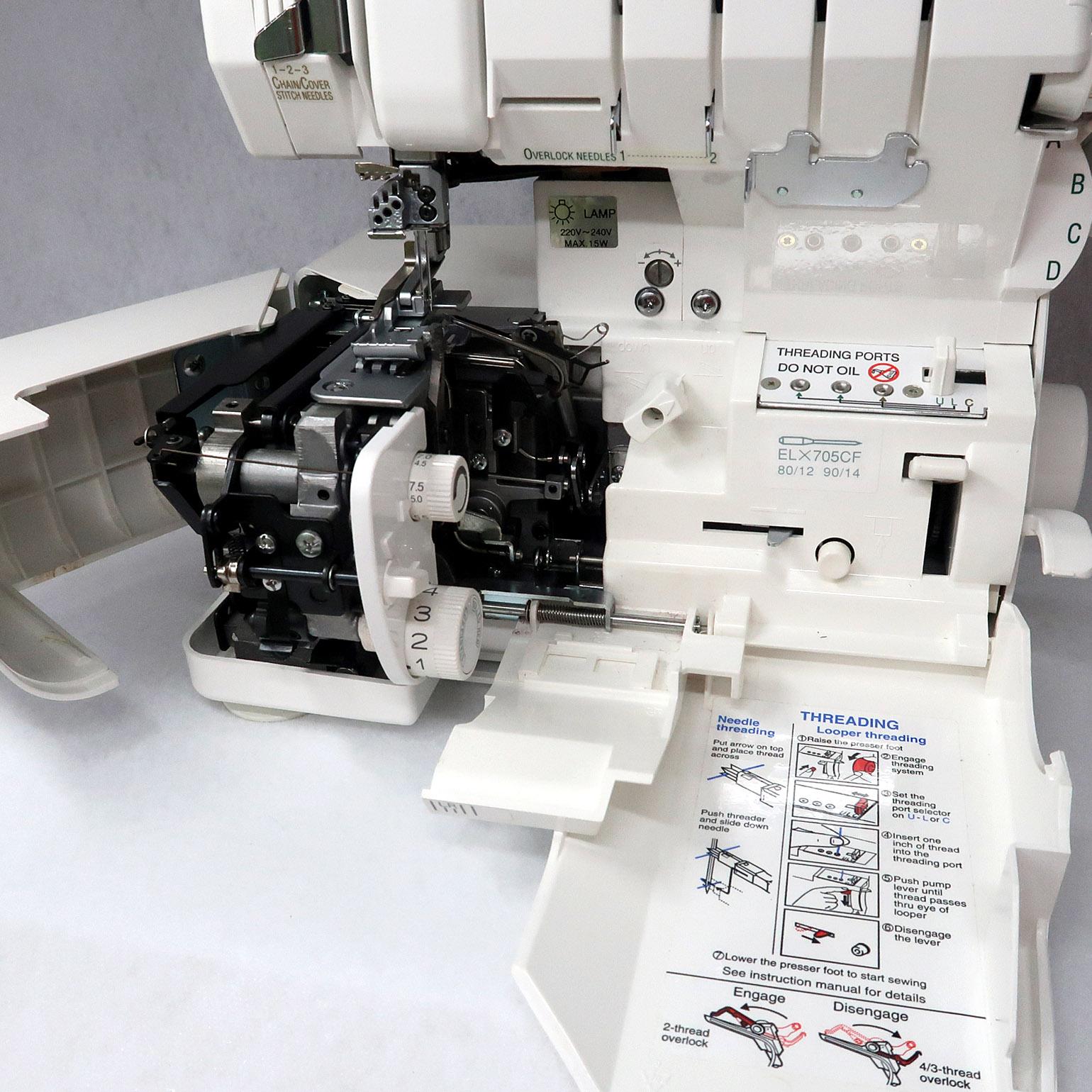

- Jet Air Threading – All loopers thread in a breeze
- Automatic Thread Delivery system (ATD)

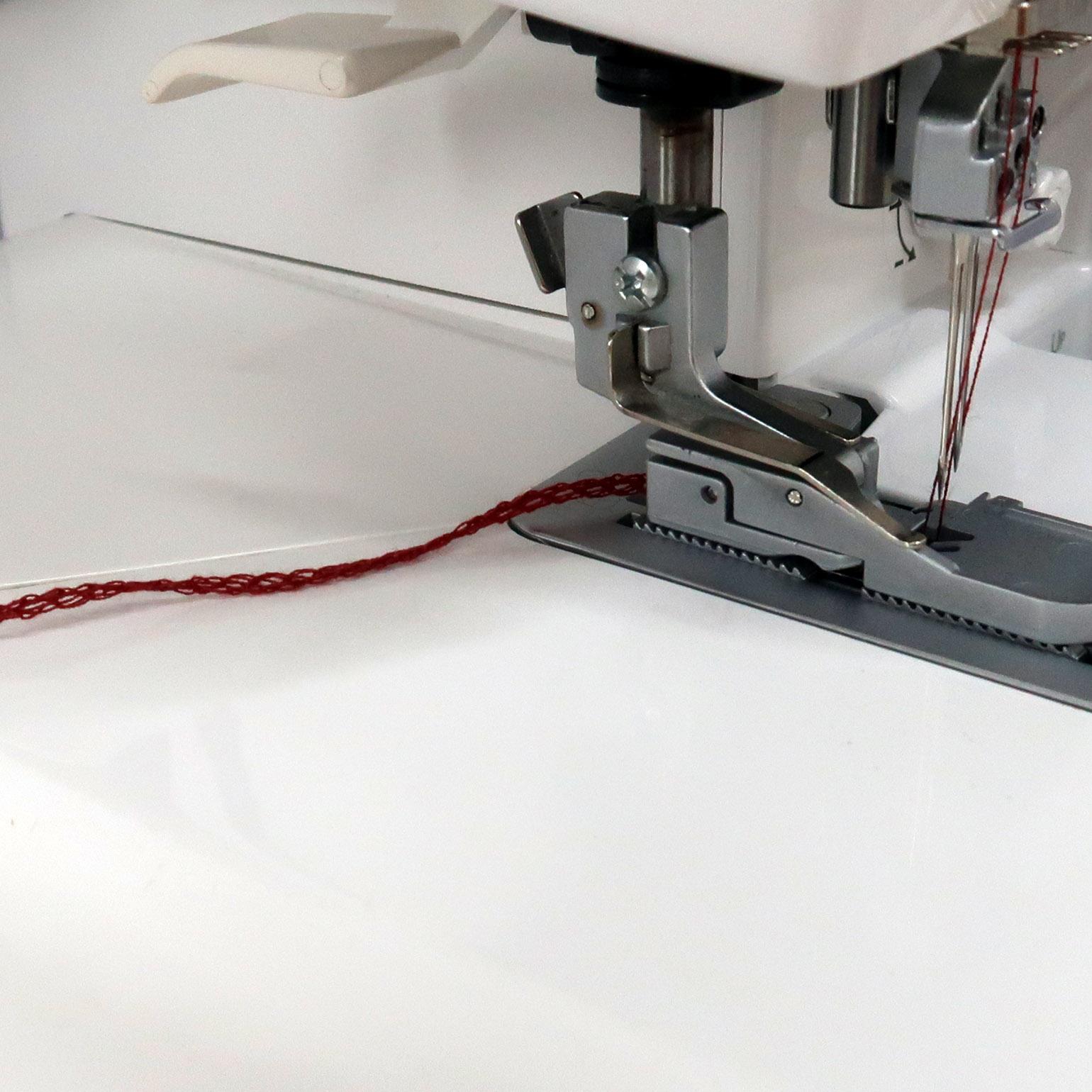

- The ability to continually chain off with coverstitch needles
- Overlocking options using 2 to 8 threads resulting in 58 stitch options, changing easily with a simple selection of A, B, C or D
- Coverstitch available using 3 needles (triple coverstitch), wide (6mm), narrow (3mm) and single chain stitch

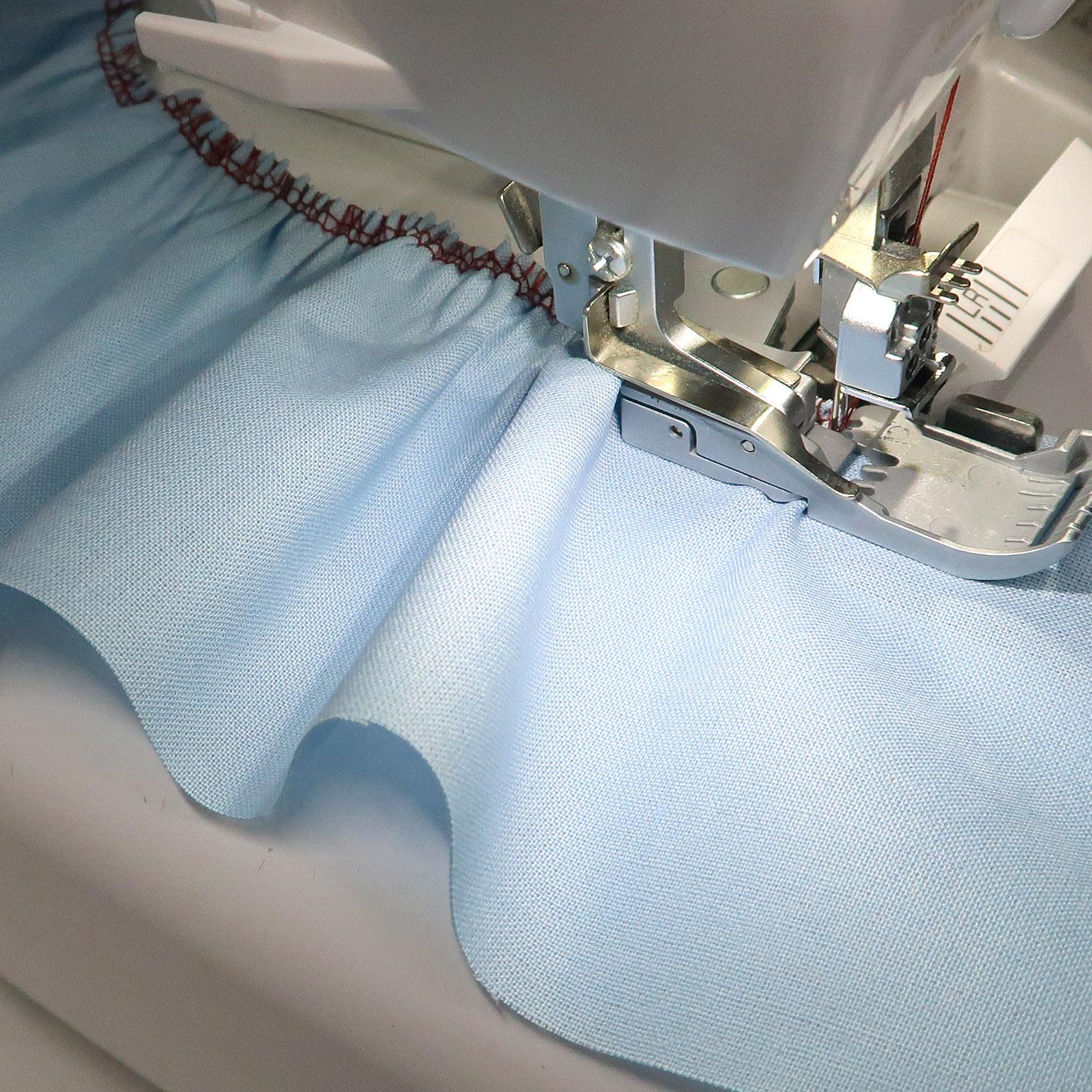

- True 2 to 1 ratio differential feed
- Automatic rolled hem stitch for a professional finish
- Overlock stitch functions to seam & encase fabric edges
- Flatlock stitch functions for seaming & decorative effects
- Tubular loopers prevent thread tangling
- Vertical needle system – minimizing needle deflection on heavy fabrics
- Heavy duty cutting system copes with thick fabrics with ease

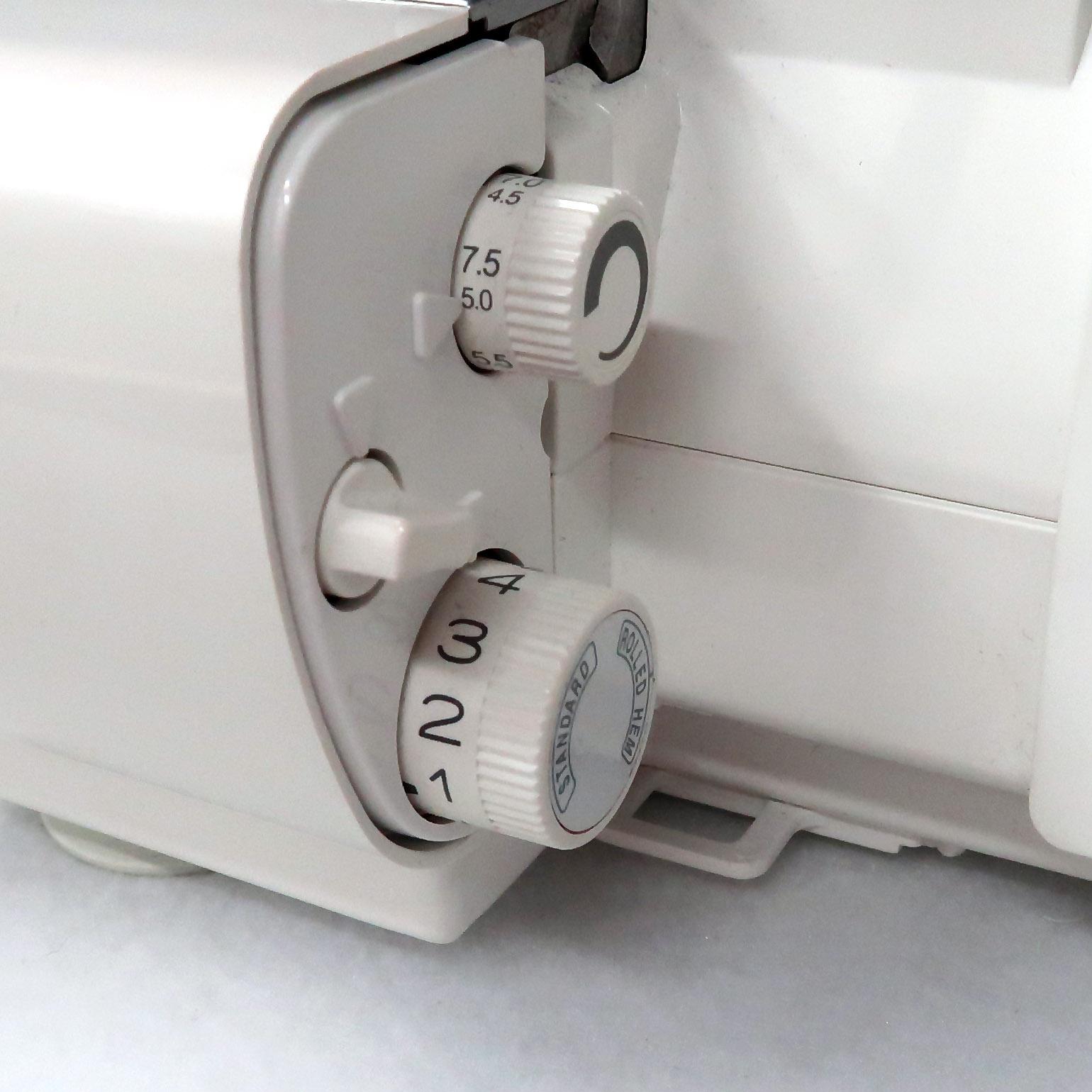

- Rolled hem adjustment with just a turn of a dial
- True 2 to 1 ratio differential feed – ranging from 0.6 to 2
- Adjustable stitch width – ranging from 1.5mm to 7.5mm on overlocking, and up to 16mm using coverstitch and overlock combined
- Adjustable stitch length 0.75mm – 4mm
- Easy to follow colour coded thread chart

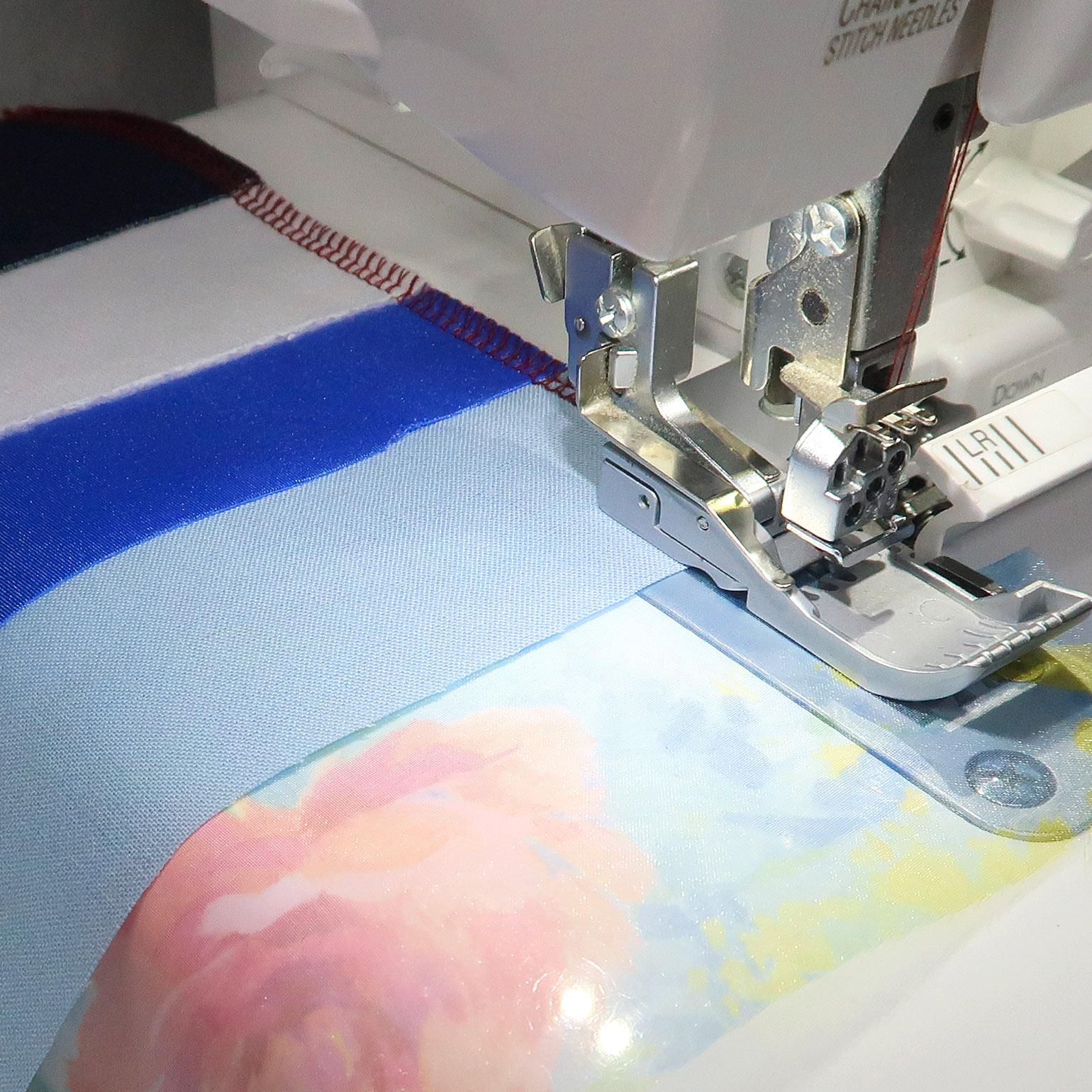

- Snap on multi purpose foot including ribbon and tape guide
- Built in thread cutter
- Built in accessory storage
- Safety switches connected to front door, side door and presser foot
- 1500 stitches per minute (approx)
- Needle system ELx705CF #12/80 #14/90
- 5 year conditional warranty, parts and labour
- Machine Weight 8.3 kgs
- Made in Japan
| Specifications | |
|---|---|
| Machine Type | 8-Thread Overlocker |
| Machine Type | Coverstitch |
| Threading System | JetAir™ |
| Key Technology | |
| Number of Threads | 8 |
| RevolutionAir™ Threading – Needles & Loopers | |
| ExtraordinAir™ Threading | |
| NEW JetAir™ (easier looper threader engagement) | |
| JetAir™ Threading | |
| Tension System | Auto Thread Delivery (ATD) System |
| Lighting | Standard Globe |
| Throat Space | - |
| True 2 to 1 ratio differential feed - ranging from 0.6 to 2 | |
| Knee Lift (Presser Foot) | |
| Variable Speed Control (easily set the maximum speed) | |
| Exclusive Fabric Support System | |
| Vertical Needle System – minimises needle deflection | |
| Advanced Features | |
| Combination Stitch Options | 66 |
| Coverstitch: triple, wide (6mm), narrow (3mm) & single chain stitch | |
| Overlocking stitch Options: 4/3/2 Thread | |
| Exclusive Wave Stitch and Reverse Wave Stitch | |
| Automatic rolled hem stitch with the turn of a dial | |
| Flatlock stitch option for seaming and decorative effects | |
| Stitch Length | 0.75 to 4mm |
| Stitch Width – Overlocking | 1.5 to 7.5mm |
| Stitch Width – Expressive (overlocking & coverstitch combined) | Up to 16mm |
| Heavy duty cutting system – cut thick fabrics easily | |
| Presser Foot Pressure Adjustment | Adjustable Screw |
| Presser Foot Height | 4.5mm |
| Sewing speed (stitches per minute) | up to 1500 |
| Convenience Features | |

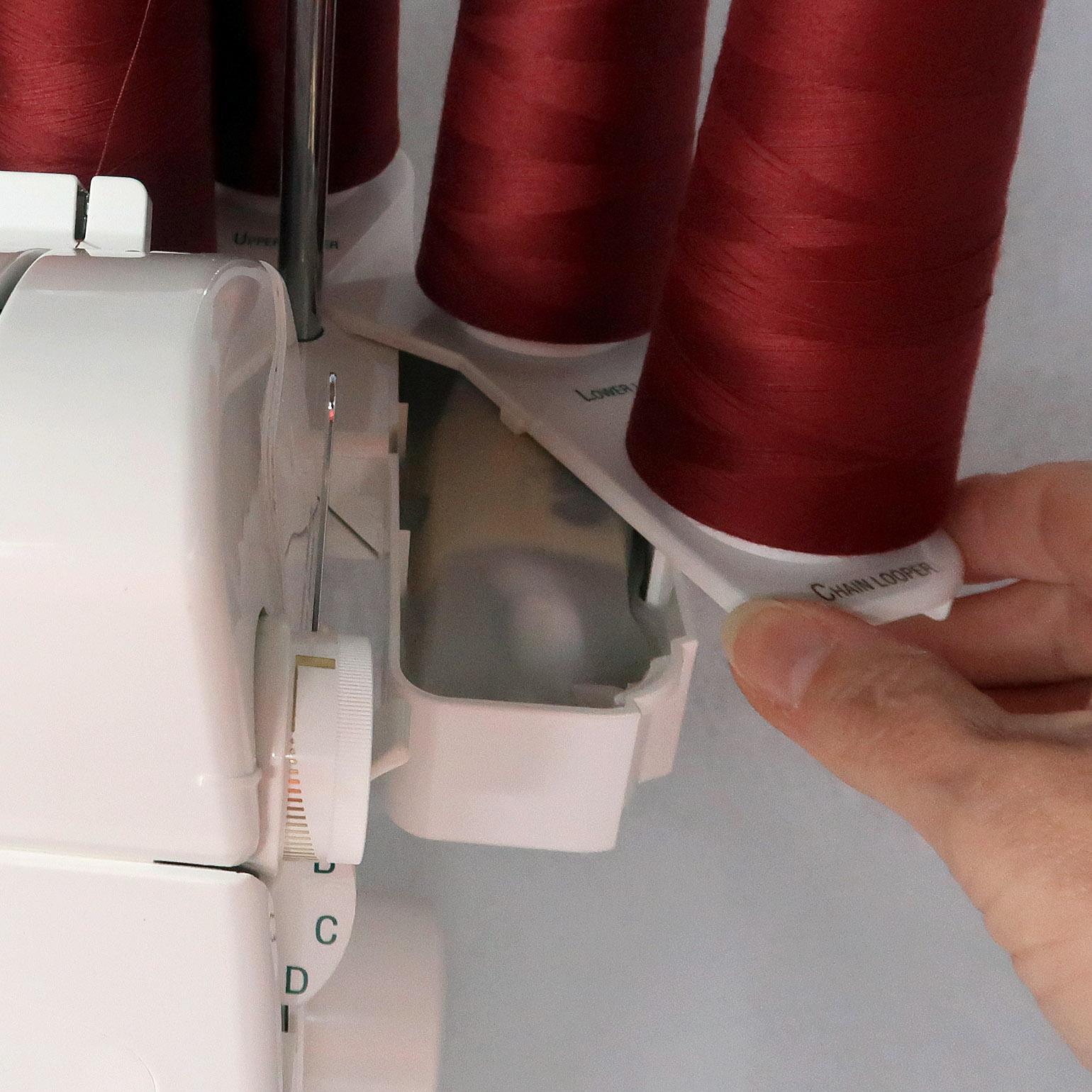

| Thread Stand Tray with Magnet | |
| Colour Coded Quick Reference Threading Guide | |
| Built-in Manual Needle Threader | |
| Position of presser foot lever | Rear |
| Included Foot | Grooved Foot |
| Built in Thread Cutter | |
| Guard plate for needle screws | |
| Built in Accessory Storage | |
| Saftey Switches | 3 |
| Needle Drop Tray | |
| Electronic Foot Control | |
| Other Features | |
| Needle Type | EL 705 CF |
| Machine Weight | 8.3KG |
| Made in Japan & 5 Year Conditional Warranty | |
| Optional Accessories | |
| Optional Feet Available | 16 |
| Optional Attachments | 13 |
| Compatibility with Knit Binders/Lap Seam Binder | |
| Clear Extension Table Compatibility | CT-1 |
IN THE BOX
- Instruction manual
- Quick reference threading guide
- Combination foot control & power cord
- Package of assorted sized needles Organ ELx705CF

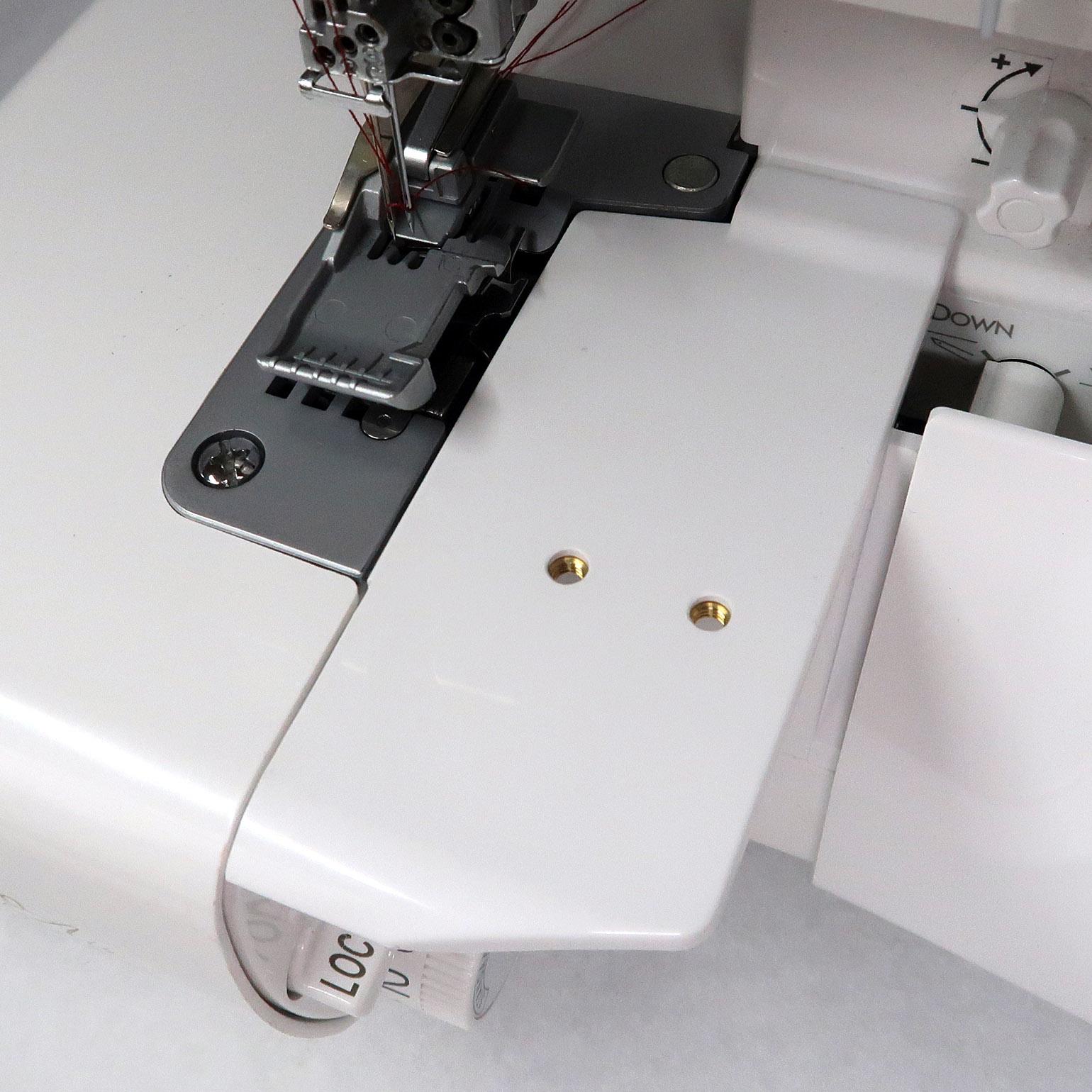

- Flat table for chain/cover stitching
- 2 x Guide fixing screws for table
- Lint brush/needle insert tool
- Manual needle threader
- Allen screwdriver
- Tweezers
- Upper cutting blade for replacement
- Screwdriver
- Looper threading tool
- 2 x Overlock needle screws
- 2 x Chain/cover stitch needle screws
- 8 x Thread nets
- 8 x Spool caps with sponge
- 8 x Spool caps
- Machine cover
- 8 x Cone holders
- Standard grooved presser foot
- Thread stand extension
- Thread guide extension
EVOLVE QUICK REFERENCE THREADING GUIDE
